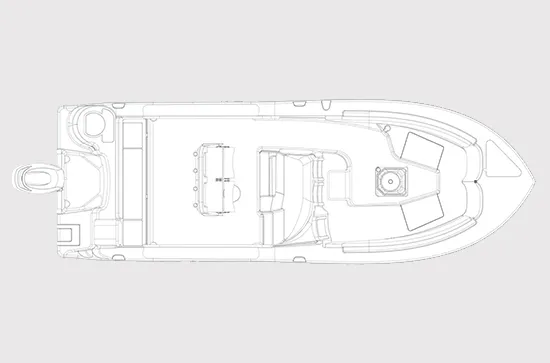

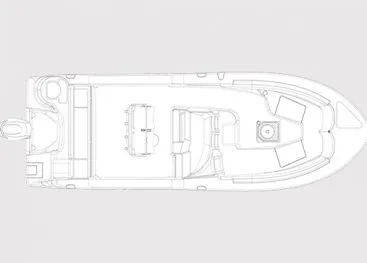

The Sea Fox 248 Side Console combines an open, versatile layout with the comfort and functionality of a side-console design. Its spacious cockpit, wraparound bow seating, private oversized head, and integrated berth create a practical setup for family cruising, fishing, and extended days on the water.
Designed to balance comfort and fishability, the 248 Side Console features a 40-gallon livewell, insulated fishboxes, removable bow casting deck filler, aft bench seating, flip-up jump seat, abundant storage, and a self-bailing cockpit. With a Carolina flare hull, 18-degree deadrise, 117-gallon fuel capacity, and up to 300 horsepower, it delivers a capable combination of offshore performance, storage, and everyday versatility.
| SPEC | US UNIT | DESCRIPTION |
|---|---|---|
| Centerline Length | 24′ 4″ | Centerline hull length |
| Beam | 8′ 6″ | Maximum hull width |
| Bridge Clearance | 99″ | Based on factory-installed Ultima hard top; optional outriggers not included |
| Deadrise | 18° | Hull deadrise angle |
| Draft – Hull | 14″ | Hull draft |
| Transom Height – Centerline | 25″ | Centerline transom height |
| Dry Weight | 3,593 LBS | Approximate weight including boat and factory options, excluding motor, water, fuel, owner gear, and batteries |
| Maximum Weight | 5,925 LBS | Approximate weight including boat and factory options, full fresh water holding and fuel tanks, two batteries, gear, and largest motor |
| Fuel Capacity | 117 GAL | Fuel capacity may vary due to US EPA Evaporative Standard requirements |
| Persons Capacity | 10 | Maximum persons capacity |
| Total Capacity | 2,500 LBS | Maximum total capacity |
| Maximum Horsepower | 300 HP | Maximum rated horsepower |
